# System Monitor

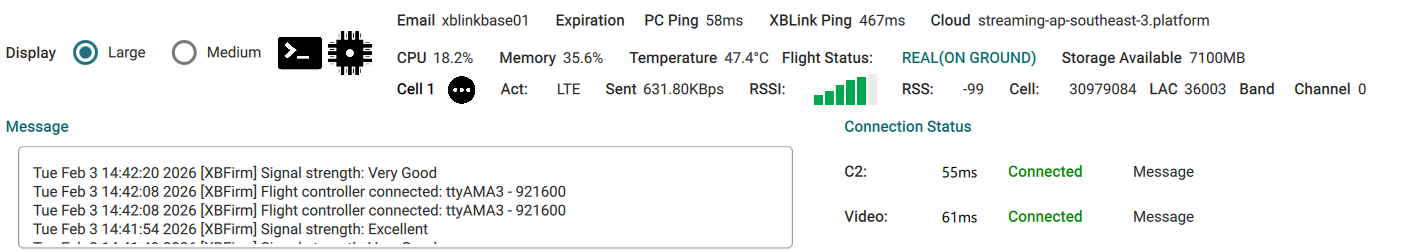

## Dashboard

<figure><img src="https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FTEnid8slfk8yG87EyboI%2Fuploads%2Fa58LjDCE9n08J6owUSl7%2FScreenshot%202026-02-03%20144230.png?alt=media&#x26;token=c2df477f-3103-4eeb-bcd1-b8969fda7e5b" alt=""><figcaption></figcaption></figure>

## System Monitor Tab

<figure><img src="https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FTEnid8slfk8yG87EyboI%2Fuploads%2FjNOd2MSbvGTOdUn4bLFz%2FScreenshot%202026-02-03%20144157.png?alt=media&#x26;token=b975161b-0ce3-4fa3-8937-efbe34c6051b" alt=""><figcaption></figcaption></figure>

## Description

* **RSSI**: Received Signal Strength Indicator

**RSSI** (Received Signal Strength Indicator) is a parameter which provides information about total received wide-band power (measure in all symbols) including all interference and thermal noise.

| **Value** | **RSSI dBm** | **Condition** |
| --------- | ------------ | ------------- |
| 2         | -109         | Marginal      |
| 3         | -107         | Marginal      |
| 4         | -105         | Marginal      |
| 5         | -103         | Marginal      |
| 6         | -101         | Marginal      |
| 7         | -99          | Marginal      |
| 8         | -97          | Marginal      |
| 9         | -95          | Marginal      |
| 10        | -93          | OK            |
| 11        | -91          | OK            |
| 12        | -89          | OK            |
| 13        | -87          | OK            |
| 14        | -85          | OK            |
| 15        | -83          | Good          |
| 16        | -81          | Good          |
| 17        | -79          | Good          |
| 18        | -77          | Good          |
| 19        | -75          | Good          |
| 20        | -73          | Excellent     |
| 21        | -71          | Excellent     |
| 22        | -69          | Excellent     |
| 23        | -67          | Excellent     |
| 24        | -65          | Excellent     |
| 25        | -63          | Excellent     |
| 26        | -61          | Excellent     |
| 27        | -59          | Excellent     |
| 28        | -57          | Excellent     |
| 29        | -55          | Excellent     |
| 30        | -53          | Excellent     |

* **Access Technology**: Radio Access Technology being used by XBLink Mini
* **PC Ping:** Ping time from pilot app to streaming server
* **XBLink Ping**: Ping time from XBLink Mini to streaming server
* **Cloud:** Streaming Server domain, (Ex: hk stand for HongKong)
* **CPU:** XBLink Mini's CPU performance
* **Memory:** XBLink Mini's Memory performance
* **Temperature:** XBLink Mini's temperature
* **Bytes sent**: Total bytes sent from XBLink Mini
