# Overview

### Components

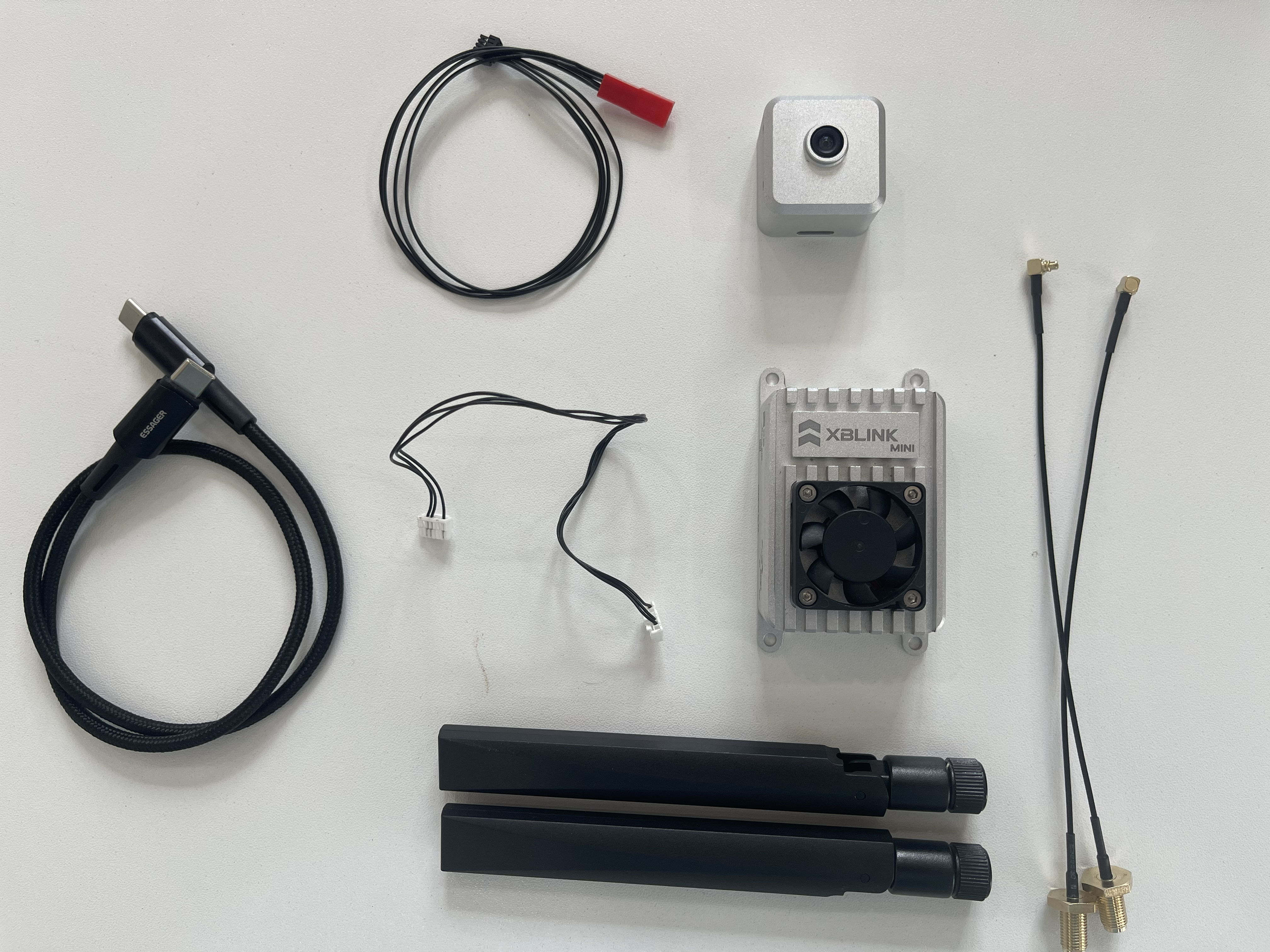

<figure><img src="https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FTEnid8slfk8yG87EyboI%2Fuploads%2F5WnYXSlexmUKYTLy8zFs%2Fcomponent_MINI.png?alt=media&#x26;token=74f97906-1195-4f3b-813f-f2f16d208f77" alt=""><figcaption><p>XBLink Mini's Accessories</p></figcaption></figure>

### Electronics

| Name                 | Quantity   |
| -------------------- | ---------- |
| XBLink Mini          | 1          |
| XBCam V2             | 1 (option) |
| Telemetry Cables     | 1          |
| Power Cables         | 1          |
| USB type C to type C | 1 (option) |
| 4G LTE Antenna Cable | 2          |
| 4G LTE Antenna       | 2          |

### Other (not include)

| Name                          | Description     |
| ----------------------------- | --------------- |
| USB Type-A to Micro USB Cable | Update Firmware |

### Specifications <a href="#spectifications" id="spectifications"></a>

<table data-header-hidden><thead><tr><th width="374"></th><th></th></tr></thead><tbody><tr><td><strong>Product Performance</strong></td><td>​<strong>Content</strong></td></tr><tr><td>Autopilot</td><td>Pixhawk Cube, Pixhawk 4,Pixhawk 6X etc...</td></tr><tr><td>Data protocol</td><td>Mavlink1, Mavlink2</td></tr><tr><td>Camera</td><td>XBCam V2 12 MP</td></tr><tr><td>Video output</td><td>1080p、720p、480p、320 - Custom</td></tr><tr><td>Video codec</td><td>H264</td></tr><tr><td><strong>Interface</strong></td><td>​<strong>Content</strong></td></tr><tr><td>Video input</td><td>Only XBCam V2 12MP</td></tr><tr><td>Antenna interface</td><td>2 x MMCX</td></tr><tr><td>UART</td><td>UART 1 (telemetry), UART 2/3 (Payload)</td></tr><tr><td><strong>Work Environment</strong></td><td>​<strong>Content</strong></td></tr><tr><td>Voltage input</td><td>7 - 30V</td></tr><tr><td>Temperature</td><td>-10 - +60°C</td></tr><tr><td><strong>Appearance Size</strong></td><td>​<strong>Content</strong></td></tr><tr><td>Size</td><td>59mm X 43mm X 25mm</td></tr><tr><td>Weight</td><td>71.0g</td></tr><tr><td><strong>Ground station</strong></td><td>​<strong>Content</strong></td></tr><tr><td>Support</td><td>PC (Windows, IOS), Android device</td></tr><tr><td>Software</td><td>XBStation Pilot App</td></tr><tr><td>Compatible</td><td><em>MissionPlanner</em>, <em>QGroundControl</em></td></tr></tbody></table>

### **XBCam V2** <a href="#xbcam" id="xbcam"></a>

| **Performance**     | ​Title                 |
| ------------------- | ---------------------- |
| Size                | 26mmX26mmX23mm         |
| Weight              | 22.9g                  |
| Megapixels          | 12 Megapixels          |
| Field of view (FOV) | 120°(D)x102°(H)x67°(V) |

### 4G **Performance** <a href="#id-4g-lte-performance" id="id-4g-lte-performance"></a>

<table data-header-hidden><thead><tr><th width="246">Performance</th><th>​Title</th></tr></thead><tbody><tr><td>Network Frequency</td><td><p><strong>NR-FDD</strong>: n1 / n2 / n3 / n5 / n7 / n8 / n12 / n13 / n18 / n20 / n25 / n28 / n66 / n71<br><strong>NR-TDD:</strong> n38 / n40 / n41 / n48 / n77 / n78 / n79</p><p><strong>LLTE-FDD:</strong> B1/ B2/ B3/ B4/ B5/ B7/ B8/ B12/ B13/ B18/ B19/ B20/ B25/ B26/ B28 <strong>LTE-TDD:</strong> B38/ B39/ B40/ B41</p><p><strong>WCDMA:</strong> B1/ B2/ B4/ B5/ B6/ B8/ B19</p><p><strong>GSM:</strong> B2/B3/B5/B8</p></td></tr><tr><td>Region</td><td>Global (All countries and carriers): Europe/Middle East/Africa/Korea/Thailand/India/North America/Australia/New Zealand/Taiwan/Brazil/Japan</td></tr><tr><td>Regulatory</td><td>GCF/ PTCRB/ CE/ ANATEL / CCC/ RCM/ IC/ FCC/ JATE/ TELEC/ KC/ NCC</td></tr><tr><td>Carrier</td><td>T-Mobile/ Telstra/ AT&#x26;T/ Deutsche Telekom/ Verizon*/ Telefonica*/ NTT DOCOMO*/ SoftBank*/ KDDI*</td></tr><tr><td>Network Rate</td><td><p><strong>NR:</strong></p><p>NR-FDD: Max 2.5Gbps (DL) / Max 500Mbps (UL)<br>NR-TDD: Max 4.5Gbps (DL) / Max 900Mbps (UL)</p><p><strong>LTE:</strong></p><p>LTE FDD: Max 150Mbps (DL)/Max 50Mbps (UL)</p><p>LTE TDD: Max 130Mbps (DL)/Max 30Mbps (UL)</p><p><strong>UMTS:</strong></p><p>DC-HSDPA: Max 42Mbps (DL)</p><p>HSUPA: Max 5.76Mbps (UL)</p><p>WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL)</p><p><strong>GSM:</strong></p><p>EDGE: Max 296Kbps (DL)/Max 236.8Kbps (UL)</p><p>GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL)</p></td></tr></tbody></table>


---
