# QGroundControl

## Login

* User Name
* Password
* Server: <https://server.platform.xbstation.com:8007> (Default)

<figure><img src="https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FTEnid8slfk8yG87EyboI%2Fuploads%2F0jcjiW8H3X7ZW2b7tdBU%2FScreenshot%202026-02-03%20140225.png?alt=media&#x26;token=09d86209-d873-499d-bf80-de4151a788b6" alt="" width="563"><figcaption></figcaption></figure>

{% hint style="info" %}
Note: Account is attached on your XBLink Mini's box. If you don't have account, please contact us.
{% endhint %}

## Connect to Telemetry data

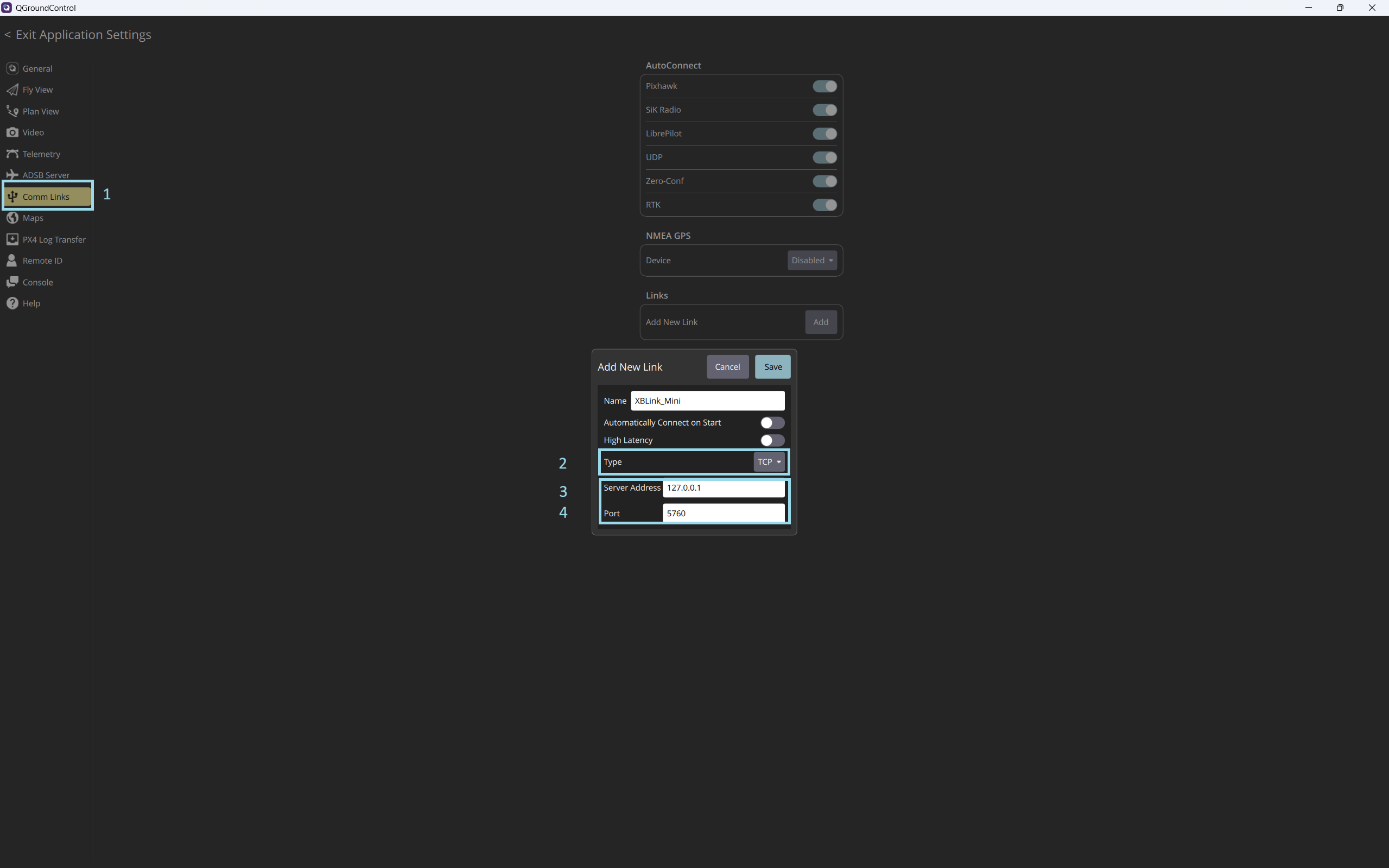

1. Open QGroundControl, select Application Settings, then choose **Comms Links**
2. Choose Add New Link, at Type, choose **TCP**
3. Enter Server Address: **127.0.0.1** (default)

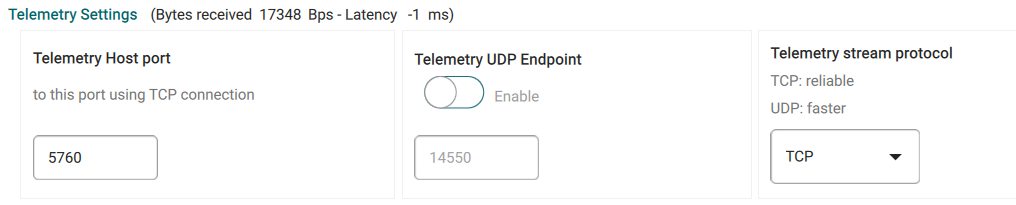

4. Remote port: **5760** or **5761** (*remember it must be same Telemetry Host Port in PilotApp*)

<figure><img src="https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FTEnid8slfk8yG87EyboI%2Fuploads%2FGxp1UJS8GB4OnsZ1G7z8%2FPilotApp_5760.png?alt=media&#x26;token=fe0ea54b-425e-4a7f-94cf-50d15acc4f36" alt=""><figcaption></figcaption></figure>

<figure><img src="https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FTEnid8slfk8yG87EyboI%2Fuploads%2F7hikBn7tASGFmc3IZuoS%2FGroundcontrol.png?alt=media&#x26;token=7fdc7f5f-6be3-432a-961f-1dc6593cca1c" alt=""><figcaption></figcaption></figure>

## Connect to Video Streaming

### XBCam V2

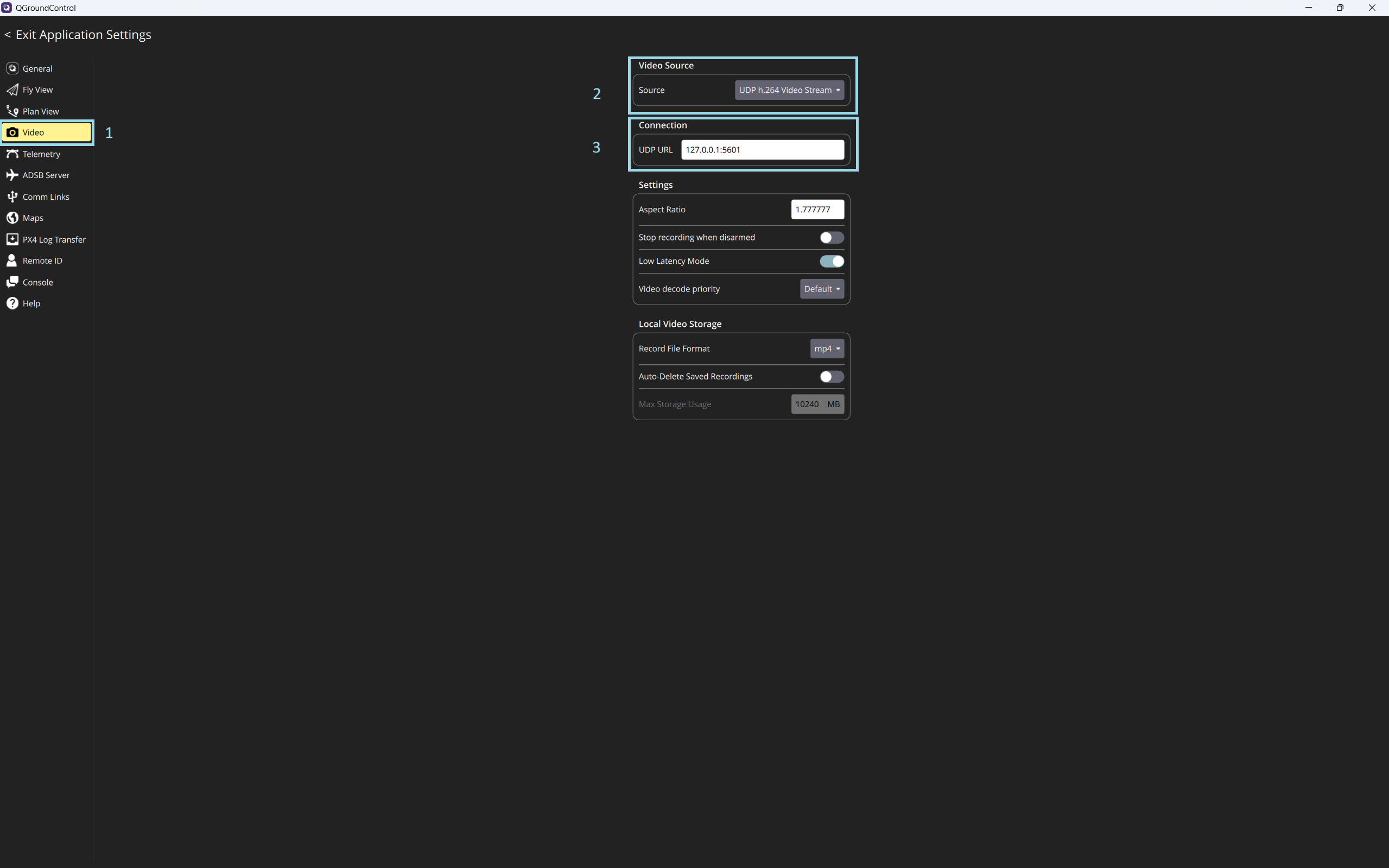

1. Open QGroundControl, select Application Settings, then choose **Video**
2. Video source: **UDP h.261 Video Stream**

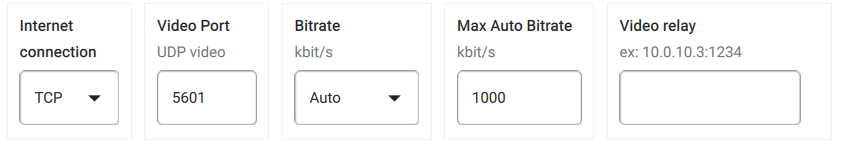

3. UDP Port: **5600** or **5601** (*remember it must be same Video Port in PilotApp*)

<figure><img src="https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FTEnid8slfk8yG87EyboI%2Fuploads%2FZSkHVcCVrR9iFFKYi0gw%2FPilotApp_5601.png?alt=media&#x26;token=275a4336-ffd5-4c7e-8145-c2607ebbc4d0\" alt=""><figcaption></figcaption></figure>

<figure><img src="https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FTEnid8slfk8yG87EyboI%2Fuploads%2FTPlcV0COWqp2OyCpwIhm%2FVideo_QGC.png?alt=media&#x26;token=36dcae9f-2473-432b-8a34-7125c158a2c3" alt=""><figcaption></figcaption></figure>

## Video Tutorials

* XBStationPilotApp - QgroundControl: [here](https://www.youtube.com/watch?v=8mLK-jrc7eE)

{% embed url="<https://www.youtube.com/watch?v=8mLK-jrc7eE>" %}
Connect Telemetry to Pixhawk and video data with XBCam V2
{% endembed %}

{% hint style="info" %}
Let's explore features that XBLink supports [here](https://docs.xbstation.com/xblink-4g-r2/user-manual/advanced-configuration)!
{% endhint %}
