# XBLink-WebApp

Web interface to easily configure and communicate with XBLink.

{% hint style="success" %}
When you buy XBLink 4G R2, It is ready to use. Nothing to do. This section is useful when you want to upgrade new firmware, check device or re-login new account .
{% endhint %}

## Connect XBLink to WebApp

We support 3 method to connect to WebApp as below:

1. [**Connect via Hotspot**](#hotspot)
2. [**Connect via LAN network**](#lan-network)
3. [**Connect directly to PC**](#connect-directly-to-pc)

***

### Hotspot

You can easily connect WedApp via Wifi hotspot from your phone, table or PC.

1. Turn on XBlink.
2. Connect your PC/Phone to XBLink Wifi Hotspot

```
Name: XBLINK_your_account
Pass: xbstation.com
```

<figure><img src="https://752643261-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M1Ot9F_Ob2Aboz1SKNK%2Fuploads%2FxOGBH3b2dOZ4CplgzzOL%2Fimage.png?alt=media&#x26;token=3ffe9109-a816-4e8f-ba97-ef8d9212b325" alt=""><figcaption><p>PC, Tablet, Phone</p></figcaption></figure>

3. Open web browser on PC/Phone and go to this address **<http://10.0.0.1> or <http://xblink.local>**

<figure><img src="https://752643261-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M1Ot9F_Ob2Aboz1SKNK%2Fuploads%2FJiXpAoUsgwH1u3iPecI9%2Fimage.png?alt=media&#x26;token=a33da6a7-32a5-40c8-ac59-bb60a2f9f4ec" alt=""><figcaption><p><strong>http://10.0.0.1 or http://xblink.local</strong></p></figcaption></figure>

### LAN network

1. Connect [JST-GH to RJ45 Ethernet Adapter cable](https://docs.xbstation.com/xblink-plus/user-manual/getting-started/overview#electronics) by Ethernet Cable (**only supported Cat6**) to your LAN network. Then, plug it into ETH port of XBLink.
2. Turn on XBLink.

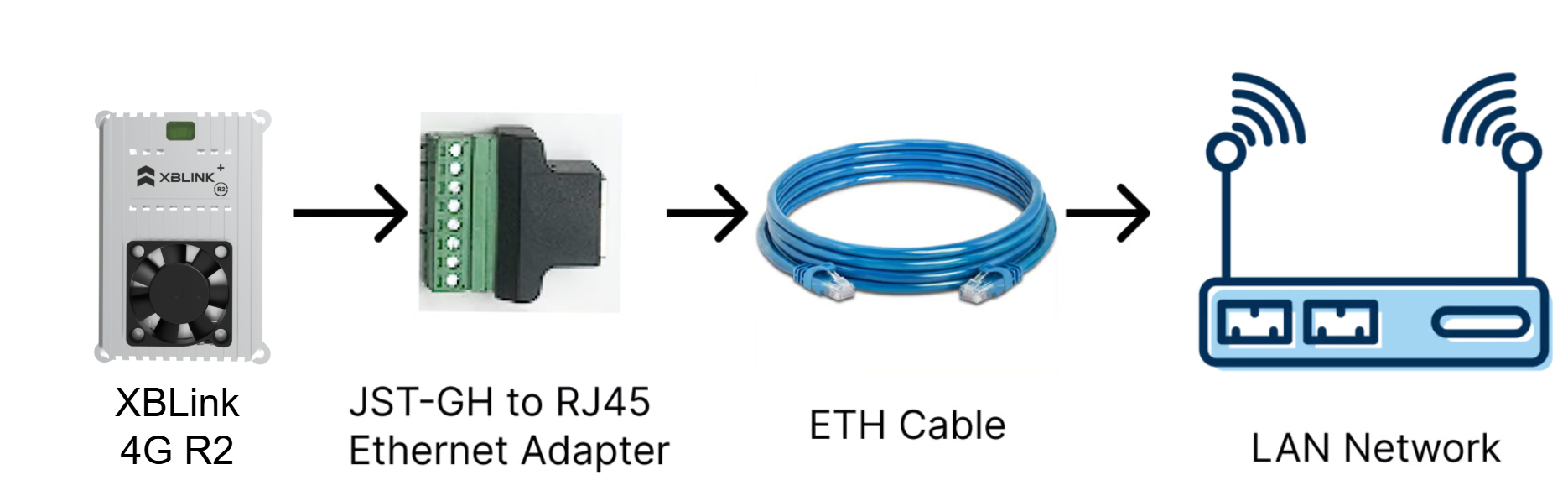

<figure><img src="https://752643261-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M1Ot9F_Ob2Aboz1SKNK%2Fuploads%2FGTGnZBlLfl4oE19Shaer%2FUntitled%20Diagram2.drawio.png?alt=media&#x26;token=b6f464f5-0b3c-4cae-86f6-d3c76a33128c" alt=""><figcaption><p>Connect to LAN network</p></figcaption></figure>

3. Open web browser on PC/Phone and go to this address **<http://xblink.local>** or **XBLink IP (Example: 192.168.1.24)**

<figure><img src="https://752643261-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M1Ot9F_Ob2Aboz1SKNK%2Fuploads%2F4gcPXfPJk1sOnnmbbR3i%2Fimage.png?alt=media&#x26;token=a1328373-d0bd-4df7-98c8-7e510677521b" alt="" width="563"><figcaption><p><strong>http://xblink.local</strong></p></figcaption></figure>

{% hint style="warning" %}
If you can't connect by **<http://xblink.local>**

please use Advanced IP Scanner to find **XBLink IP**: [here](https://www.advanced-ip-scanner.com/vi/)
{% endhint %}

<figure><img src="https://752643261-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M1Ot9F_Ob2Aboz1SKNK%2Fuploads%2F2II4GZXFxMiibcSnKsDi%2Fimage.png?alt=media&#x26;token=457a26ea-a09c-4fce-ac78-dc1b561d109c" alt=""><figcaption><p>Example for Check IP</p></figcaption></figure>

### Connect directly to PC

1. Connect [JST-GH to RJ45 Ethernet Adapter cable](https://docs.xbstation.com/xblink-plus/user-manual/getting-started/overview#electronics) by Ethernet Cable (**only supported Cat6**) to your table or PC. Then, plug it into ETH port of XBLink.
2. Turn on XBLink.

<figure><img src="https://752643261-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M1Ot9F_Ob2Aboz1SKNK%2Fuploads%2Fjp8kuDL9OuWULf72gkQg%2FUntitled%20Diagram3.drawio.png?alt=media&#x26;token=d6854468-aa05-46fd-995d-e232e1dc712b" alt=""><figcaption><p>Connect directly to PC</p></figcaption></figure>

3. Open web browser on PC/Phone and go to this address **<http://xblink.local>**

<figure><img src="https://752643261-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-M1Ot9F_Ob2Aboz1SKNK%2Fuploads%2F4F79a1S1YNLKKqaUys8A%2Fimage.png?alt=media&#x26;token=1079b642-b1ec-4742-a5fb-b045a63c521b" alt=""><figcaption><p><strong>http://xblink.local</strong></p></figcaption></figure>

Let's discover the variety of feature's WebApp!
